Product info
-
Specifications

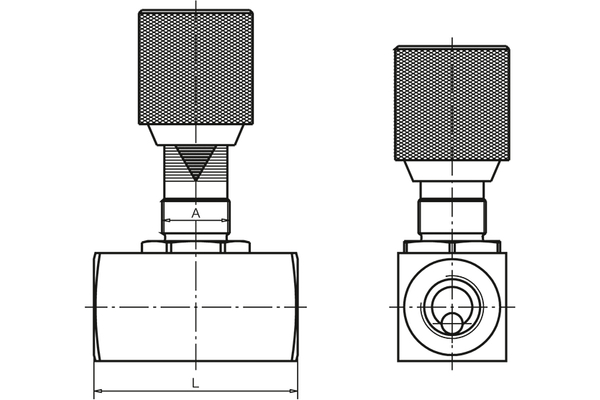

DN: 10 working pressure [bar]: 350 Thread + standard: Whitworth-Pipe thread (BSP), DIN EN ISO 228-1 L1 [mm]: 14,0 Thread [G]: G 3/8 H1 [mm]: 15,0 H2 [mm]: 33 Opening pressure [bar]: 0,5 bar B [mm]: 30 Material Casing: steel Material rotary knob: aluminium Material spindle: steel Product title short: throttle valve
