Universal Test Mandrels

20 Years of Joint‑Fit® Expertise – Continuous Evolution

Indunorm Hydraulik has been renowned for its Joint‑Fit® system for over two decades—a proven solution for safe and standards-compliant hose assembly. Building on this long-standing expertise and our commitment to remain at the forefront of technology, we have specifically enhanced our mandrel system. This ensures we not only meet today's requirements but are also perfectly prepared for future challenges. This advancement underlines our commitment to providing you with future-proof, practice-oriented solutions.

Our color‑coded mandrels, which have already proven effective in conjunction with the XP fitting system (stainless steel), are now also compatible with the XV fitting system (steel). Because they work across systems, you no longer need separate testing tools for each system. This simplifies workshop operations and improves efficiency.

With this extension, we are taking the next step toward a future-proof, modular system solution that grows with your needs.

Perfectly Matched System for Maximum Safety

Our mandrels are part of a system precisely coordinated with hose, nipple, and socket. They ensure an exact connection of all components—for maximum operational safety, longer hose life, and overall higher efficiency.

Even the smallest assembly error—due to incorrect crimp dimensions or worn tools—can lead to leaks or total hose failure. Our mandrels enable a simple but highly effective final inspection immediately after crimping. This helps identify and reliably eliminate potential errors before the hose goes into operation.

Note: Mandrels should be integrated into your test-equipment management system. Feel free to contact us for regular checks or calibrations.

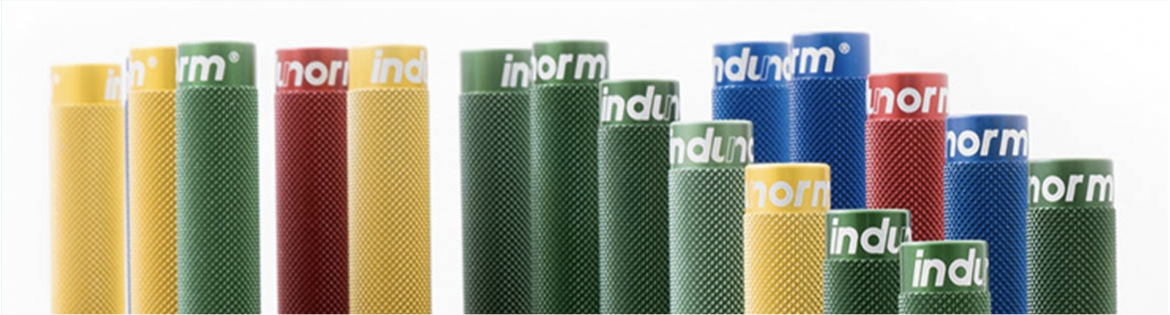

Easy Use Thanks to Intuitive Color Coding

The color-coded design of the mandrels enables fast, error-free assembly. Clear visual cues further support your staff—improving process reliability and saving time.

The application is so straightforward that no additional training is required. Within seconds, the mandrel delivers a clear result—ideal for high-throughput workshops or mobile hydraulic service providers.

Applications at a Glance

Indunorm’s color‑coded mandrels are currently usable with the following systems:

XV fittings (steel)
XP fittings (stainless steel)

Within these systems, various hose types can be securely assembled, including:

Rubber hydraulic hoses (EN 853, EN 857, EN 856 (4SP))
Thermoplastic hoses (e.g., SAE 100 R7, SAE 100 R8)
Spray hoses (e.g., TP3FS, TP16FS)
PTFE hoses (e.g., TEF3W, TEF1H)

Our mandrels are matched to the internal diameters of crimp nipples and cover all standard nominal sizes—for standardized, reliable testing regardless of hose type.

Detailed information on compatible combinations can be found in our crimp-dimension tables.
