Product info
-
Specifications

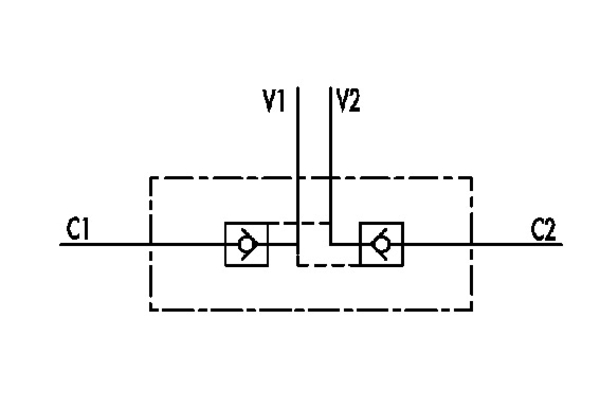

working pressure [bar]: 350 Thread + standard: G 1/2" L Fastening thread: 1/2" L Weight [kg]: 1,042 L1 [mm]: 142 max flow [ltr / min]: 50 Opening pressure [bar]: 6 H [mm]: 45 pilot ratio: 1:5 V1-V2 C1-C2 [GAS - MET]: G 1/2" L L [mm]: 90 S [mm]: 35 Connection note: Connect V1 and V2 to the supply and C1 and C2 to the actuator. L2 [mm]: 45 L3 [mm]: 12,5 Material Casing: zinc plated steel Material sealing: BUNA N standard
