Product info
-
Specifications

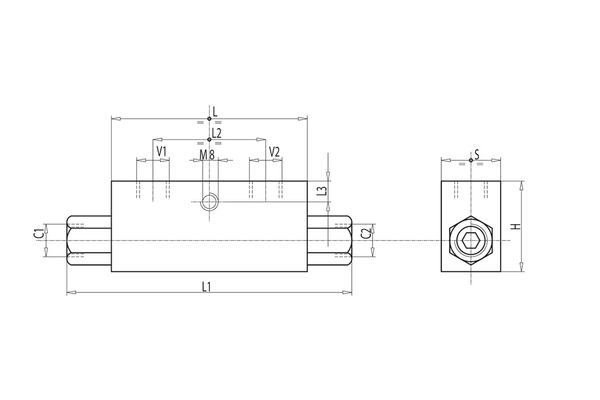

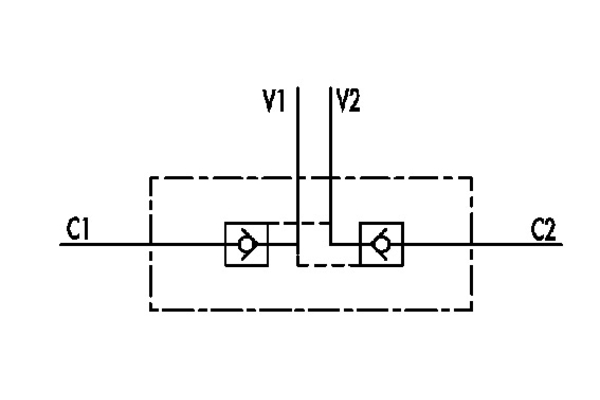

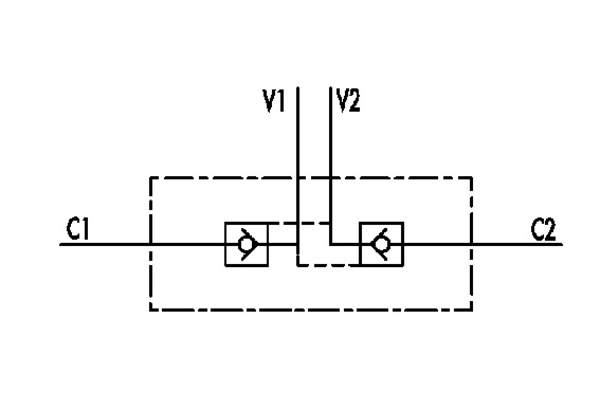

working pressure [bar]: 350 Thread + standard: G 1/4" L Fastening thread: 1/4" L Weight [kg]: 0,636 L1 [mm]: 113 max flow [ltr / min]: 20 Opening pressure [bar]: 4 H [mm]: 40 pilot ratio: 1:5,5 V1-V2 C1-C2 [GAS - MET]: G 1/4" L L [mm]: 64 S [mm]: 30 Connection note: Connect V1 and V2 to the supply and C1 and C2 to the actuator. L2 [mm]: 36 L3 [mm]: 8 Material Casing: zinc plated steel Material sealing: BUNA N standard
