Product info
-
Specifications

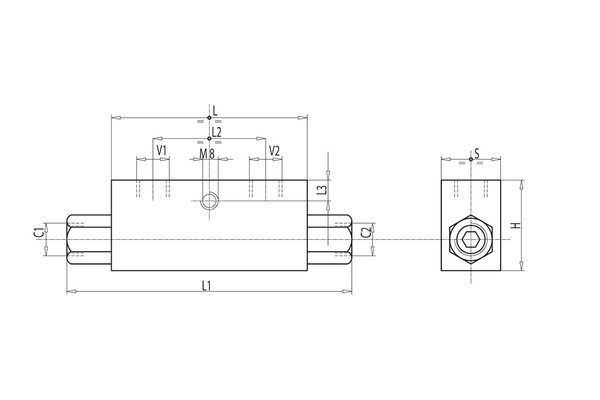

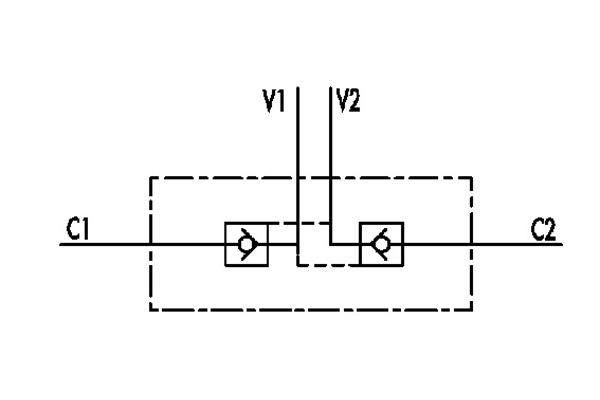

working pressure [bar]: 350 Thread + standard: G 3/8" Fastening thread: 3/8" Weight [kg]: 1,174 L1 [mm]: 156 max flow [ltr / min]: 45 Opening pressure [bar]: 8 H [mm]: 45 pilot ratio: 1:5 V1-V2 C1-C2 [GAS - MET]: G 3/8" L [mm]: 90 S [mm]: 35 Connection note: Connect V1 and V2 to the supply and C1 and C2 to the actuator. L2 [mm]: 45 L3 [mm]: 12,5 Material Casing: zinc plated steel Material sealing: BUNA N standard
