Product info
-
Specifications

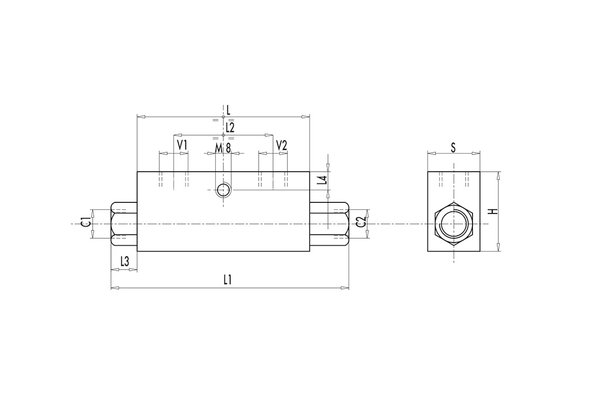

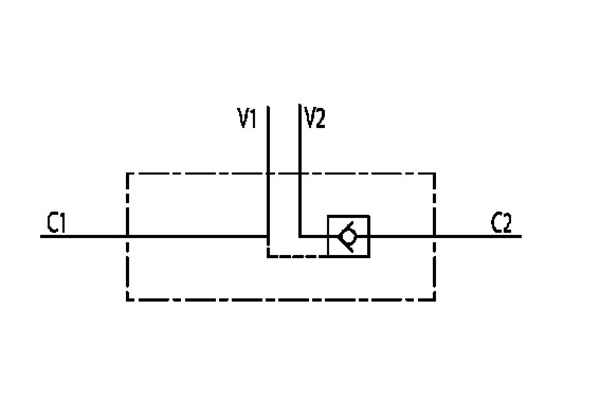

working pressure [bar]: 350 Thread + standard: BSP Thread [G1]: 3/4" Thread [G2]: 3/4" Fastening thread: 3/4" Weight [kg]: 1,792 L1 [mm]: 182 max flow [ltr / min]: 100 Opening pressure [bar]: 2 H [mm]: 60 pilot ratio: 1:4 V1-V2 C1-C2 [GAS - MET]: G 3/4" L [mm]: 100 S [mm]: 40 Connection note: Connect V1 and V2 to the supply, C1 to the free flow side of the actuator and C2 to the actuator side you want the flow to be blocked. L2 [mm]: 46 L3 [mm]: 36 L4 [mm]: 12 Material Casing: zinc-plated steel Material sealing: BUNA N Standard
