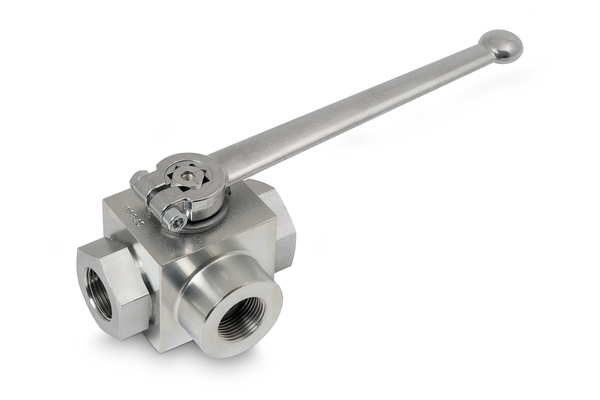

Directional ball valve (BSP)

Similar image
Similar image
Similar image

3/2-way version

To accessories

Detail

Art. No.
KHU3-G18I-4-L
%
SALE
KHU3-G14I-6-L
%
SALE
KHU3-G38I-10-L
%
SALE
KHU3-G12I-12-L
%
SALE
KHU3-G34I-20-L
%
SALE
KHU3-G1I-25-L
%
SALE
KHU3-G114I-25-L
%
SALE
KHU3-G18I-4-T
%
SALE
KHU3-G14I-6-T
%
SALE
KHU3-G38I-10-T
%
SALE
KHU3-G12I-12-T
%
SALE
KHU3-G34I-20-T
%
SALE
KHU3-G1I-25-T
%
SALE
KHU3-G114I-25-T
%
SALE
DN
4
6
10
12
20
25
32/25
4
6
10
12
20
25
32/25
working pressure [bar]
500
500
500
500
400
400
400
500
500
500
500
400
400
400
Thread + standard
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread (BSP), DIN EN ISO 228-1
Thread [GA]
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
G 1 1/4
G 1/8
G 1/4
G 3/8
G 1/2
G 3/4
G 1
G 1 1/4
L [mm]
69
69
73
82
93
115
134
69
69
73
82
93
115
134
B [mm]
30
30
40
45
55
65
65
30
30
40
45
55
65
65
SW [mm]
19
19
24
30
41
50
50
19
19
24
30
41
50
50
SW1 [mm]
7
7
8
10
14
14
14
7
7
8
10
14
14
14
H1 [mm]
15,0
15,0
14,5
22,0
29,0
31,0
31,0
15,0
15,0
14,5
22,0
29,0
31,0
31,0
H [mm]
30
30
35
45
60
65
65
30
30
35
45
60
65
65
Bore hole
L
L
L
L
L
L
L
T
T
T
T
T
T
T
GL [mm]
12
12
14
15
18
18
20
12
12
14
15
18
18
20
Quantity


Product info

  • Specifications
    Material Casing: steel
    Material switching ball: Stahl, hartverchromt
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Please contact us for construction manuals (e.g. mounting holes)

Accessories

spare parts - such as operating lever and sealings you might find in the chapter accessories.

Practical tip

Please do not use the ball valve in case of residual pressure.
