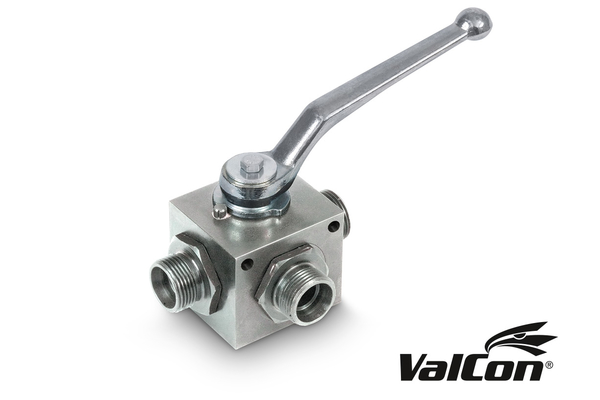

Valcon® directional ball valve (metric, light series)

Similar image
Similar image
Similar image

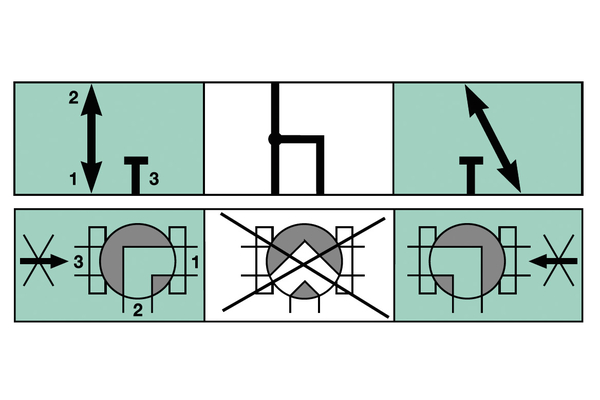

3/2-way version

To accessories

Detail

Art. No.
VC-KHU3-10L-8-L
%
SALE
VC-KHU3-12L-10-L
%
SALE
VC-KHU3-15L-12-L
%
SALE
DN
8
10
12
working pressure [bar]
315
315
315
Thread + standard
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
solderless fittings, DIN 2353, light series, ISO 8434-1
Thread [GA]
M16x1,5
M18x1,5
M22x1,5
Pipe Ø R [mm]
10L
12L
15L

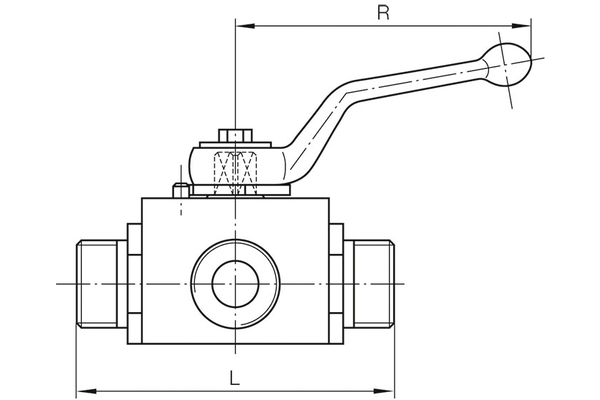

L [mm]
74,0
74,0
82,0
Lever length [R] [mm]
108,0
108,0
108,0
Bore hole
L
L
L
Quantity


Product info

  • Specifications
    Material Casing: Steel
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Equipped with mounting holes for panel constructions.

Practical tip

Please do not use the ball valve in case of residual pressure.
