VC-MANO100PH-40
Valcon®

Product info

• Technical data

  Thread [GA]:	1/2" AG
  Pressure load [bar]:	Resting load: 3/4 x full scale value Alternating load: 2/3 x full scale value Short-time: 1 x full scale value
  Nominal size:	100
  Ø-casing front side [d1] [mm]:	100
  Scaling:	bar/psi
  t [mm]:	50
  Ø-casing backside [d2] [mm]:	98
  T [mm]:	84

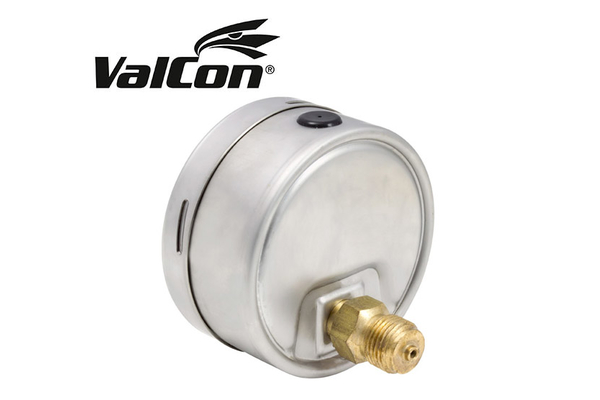

  Description:	ValCon® Manometer
  Material connection:	Brass
  Material dial:	Aluminum white, scale bar in black, psi in red, with stop pin
  Material glass:	Safety glas
  Material movement:	Copper alloy
  Material pointer:	Aluminum, black
  Product title long:	Pressure gauges and accessories
  Temperature range [°C]:	-20°C bis +60°C
  Temperature range ambient [°C]:	-20°C to +80°C
  display area [bar]:	0 – 40
  material measuring element:	Copper alloy, circularity
  protection class:	IP65 according to EN60529 / IEC 529
