Art. No.: HNS14JF45S10
List number: 03252020

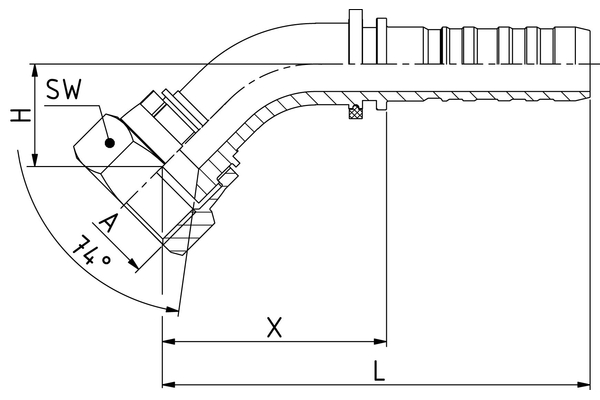

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
| DN: | 16 |
| Size: | 10 |
| Inch: | 5/8" |
| Connection thread A: | 7/8"-14 |
| X [mm]: | 57,0 |
| H [mm]: | 29,0 |
| SW1 [mm]: | 27 |
| Connection name Indunorm: | JF 45° |
| Connection type: | DKJ 45° |
| Construction form: | 45° |
| Material: | Free cutting sT-l |
| Material: | Free cutting sT-l |
| Type of fittings: | Multi spiral program HNS fittings (no skive) |
| degree: | 45 |
Reserve technical changes.
