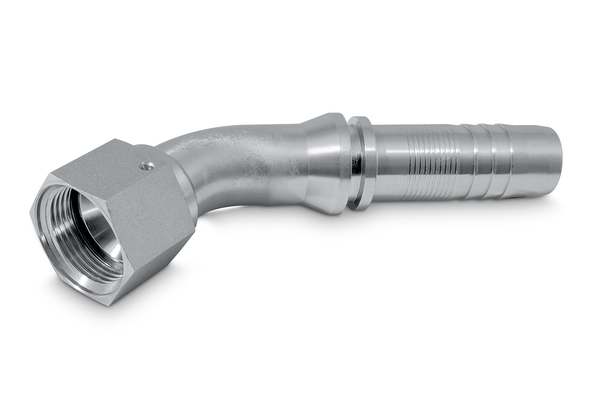

HNS30JF45S24
DKJ JF

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2"
  Connection thread A:	1.7/8"-12

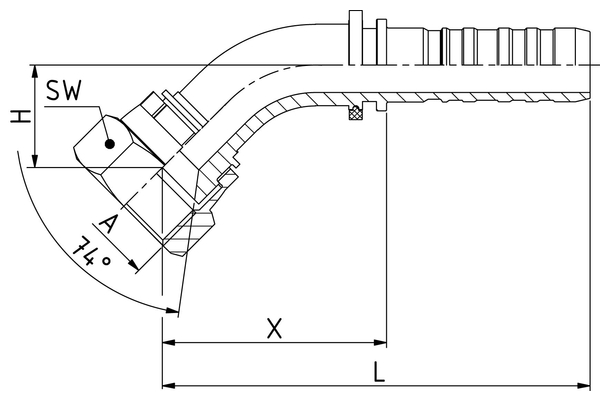

  X [mm]:	118,0
  H [mm]:	43,5
  SW1 [mm]:	55
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Type of fittings:	Multi spiral program HNS fittings (no skive)
  degree:	45
