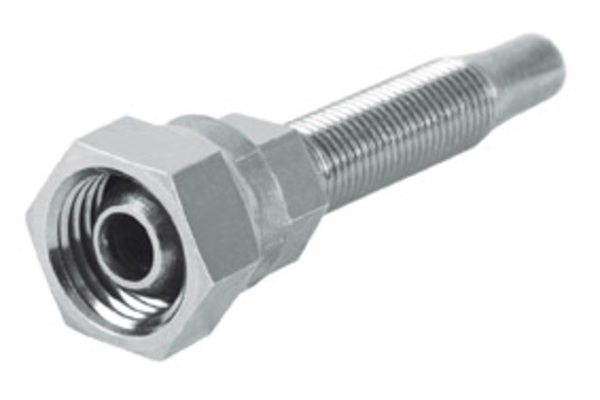

R12MSF06-02-T
DKL MSF

Product info

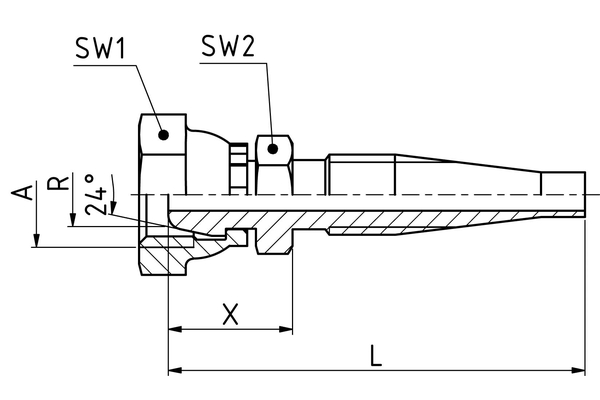

• Technical data

  DN:	04
  Size:	02
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M12X1,5
  Pipe Ø R [mm]:	6
  X [mm]:	25,0
  L1 [mm]:	42,5
  SW1 [mm]:	10
  SW2 [mm]:	17
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanized
  Type of fittings:	Tecalan® reusable series
