VC16MSOF10-45S06
Valcon® swage fitting DKOL 45° MSOF 45°

Product info

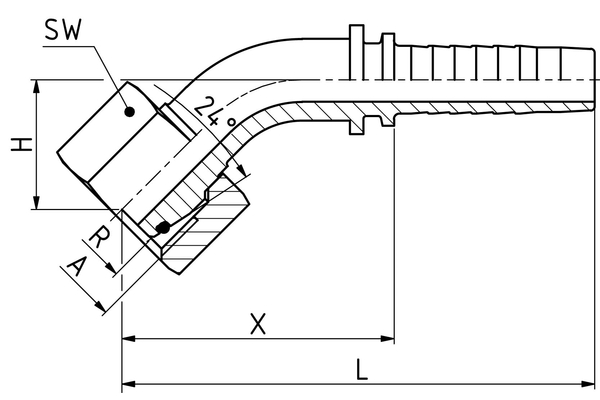

• Technical data

  DN:	10
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	24,0
  d [mm]:	7,0
  T:	M16x1,5
  SW1 [mm]:	19
  E [mm]:	19
  C [mm]:	57,0
  L [mm]:	87,0
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Type of fittings:	VC
