VC22MSOF15-45S08
Valcon® swage fitting DKOL 45° MSOF 45°

Product info

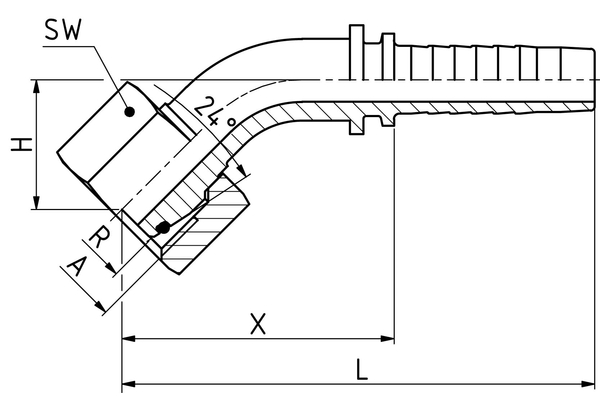

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	19,5
  d [mm]:	9,5
  Pipe E [mm]:	15
  T:	M22x1,5
  E [mm]:	27
  C [mm]:	50,0
  L [mm]:	82,0
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
