VC16MSOF08-04

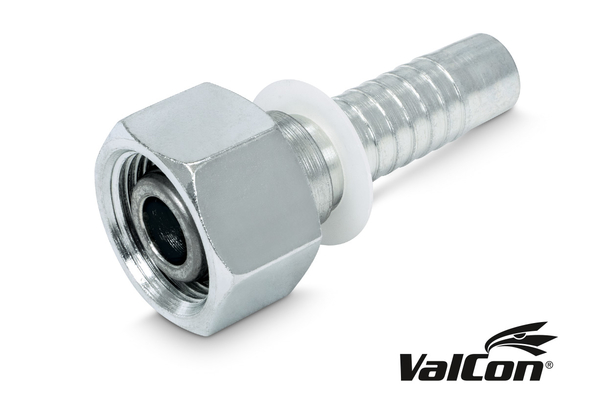

Valcon® swage fitting DKOS MSOF

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  d [mm]:	4,0
  Pipe E [mm]:	8
  T:	M16-1,5
  E [mm]:	19
  C [mm]:	25,0
  L [mm]:	50,0
  Connection name Indunorm:	MSOF
  Connection type:	DKOS
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
