Product info
-
Technical data

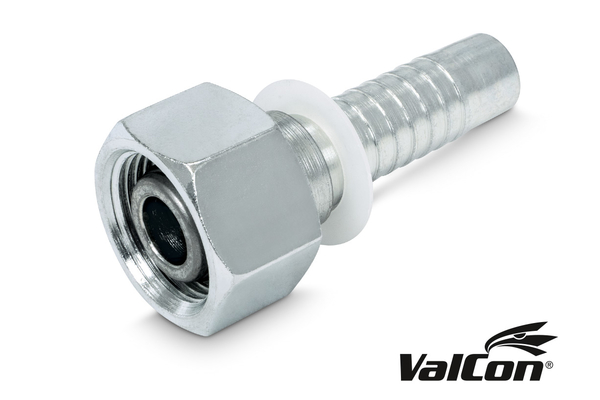

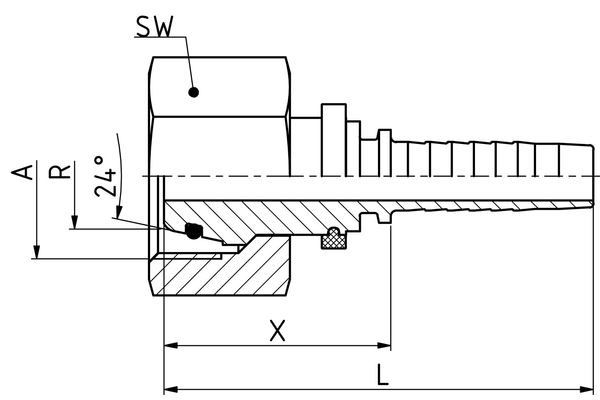

DN: 12 Size: 08 Inch: 1/2" Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series d [mm]: 9,5 Pipe E [mm]: 16 T: M24-1,5 E [mm]: 30 C [mm]: 29,0 L [mm]: 60,5 Connection name Indunorm: MSOF Connection type: DKOS Construction form: 0° Material: Free cutting steel Surface: CrIII Type of fittings: VC
