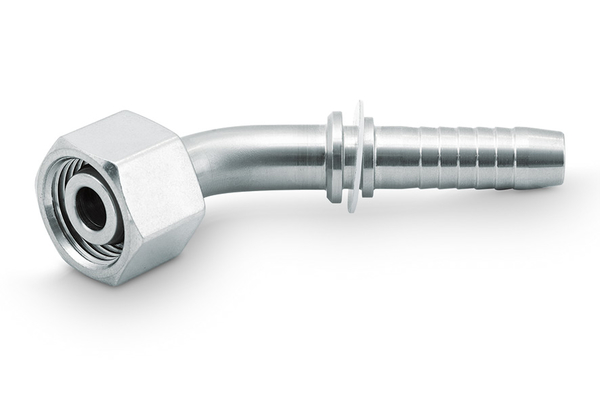

XP26MSOF18-45S08VA

Product info

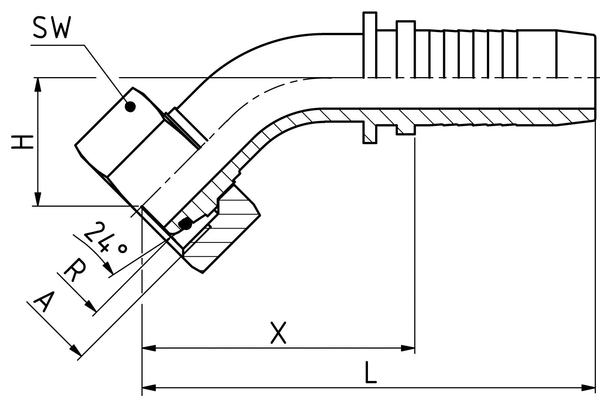

• Technical data

  DN:	12
  Connection thread A:	M 26 x 1,5
  X [mm]:	60,5
  H [mm]:	23,5
  Height O-ring [mm]:	2
  O-Ring 1:	15 x 2,0
  SW1 [mm]:	32
  d [mm]:	15
  degree:	45
