XV16R1
XV..R1

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1

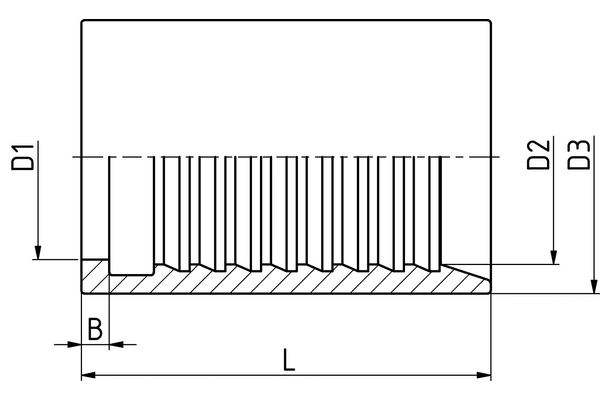

  D2 [mm]:	37,3
  Thread + standard:	Swage ferrule, non-skive, for: TP1 (DN 05-DN12 and DN19), TP-R7 (DN 05 - DN 10), TP-R8 (DN 06 - DN 10), TP-R18 (DN 05 - DN 08), TP27 (DN 08), TP3FS
  L [mm]:	53,0
  D [mm]:	30,4
  D1 [mm]:	33,0
  Connection name Indunorm:	XV..R1
  Material:	Free cutting steel
  Material:	free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
  application:	Ferrule, no-skive
