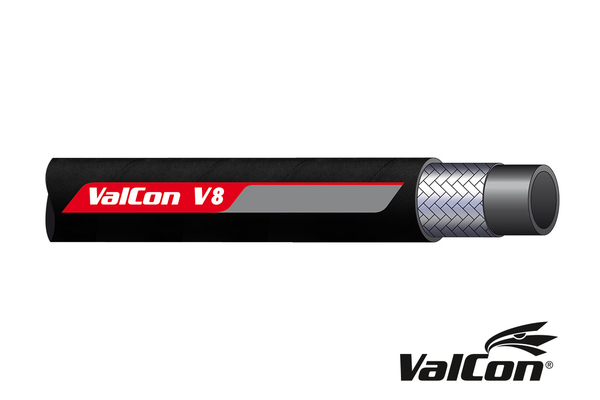

Valcon® Braided Hose V8-1SC (EN 857 – 1SC)

Hydraulic hose for medium pressure applications, according to EN 857 - 1SC

To accessories

Detail

Art. No.

V8-1SC06

V8-1SC08

V8-1SC10

V8-1SC12

V8-1SC16

V8-1SC20

V8-1SC25

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

bending radius [mm]

130

150

180

230

Working pressure [bar]

225

215

180

160

130

105

burst pressure [bar]

900

860

720

640

520

420

352

Safety factor

4:1

Standard ferrule

VC2-04

VC2-05

VC2-06

VC2-08

VC2-10

VC2-12

VC2-16

Weight [kg]

0,18

0,20

0,26

0,34

0,42

0,49

0,73

Static test pressure [bar]

450

430

360

320

260

210

176

Braid diameter max [mm]

10,8

12,1

14,5

18,1

21,0

24,4

31,9

Inner diameter min [mm]

6,1

7,7

9,3

12,3

15,5

18,6

25,0

Braid diameter min [mm]

9,6

10,9

12,7

15,9

19,8

23,2

30,7

Outer Ø max. [mm]

max. 13,5

max. 14,5

max. 16,9

max. 20,4

max. 23,0

max. 26,7

max. 34,9

Inner diameter max [mm]

6,9

8,5

10,1

13,5

16,7

19,8

26,4

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 857 - 1SC
Reinforcement:	High tensile steel wire
Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
application:	medium pressure applications
max operating temperature [°C]:	+100°C
number of layers:	1
