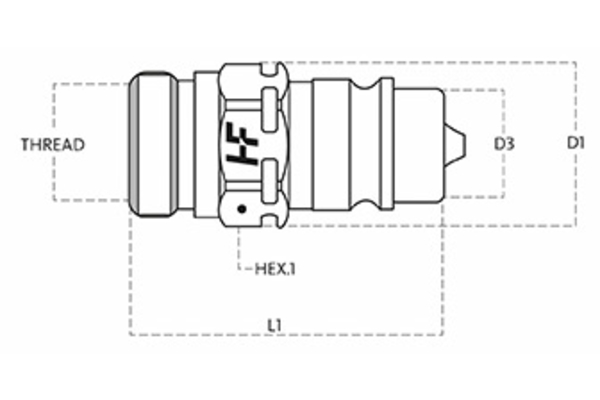

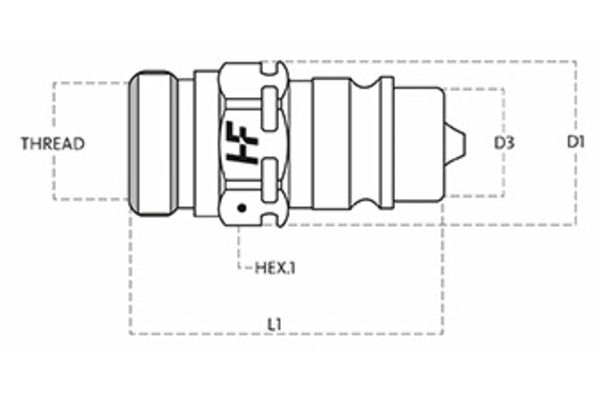

CNVHF082/2615 M
3CFHF, plug

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  Working pressure [bar]:	250
  Thread + standard:	Metric male-thread ISO 8434-1-L
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18L
  Outer Ø plug [mm]:	20,5
  Length plug [mm]:	58
  SW [mm]:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	70
