Product info
-
Technical data

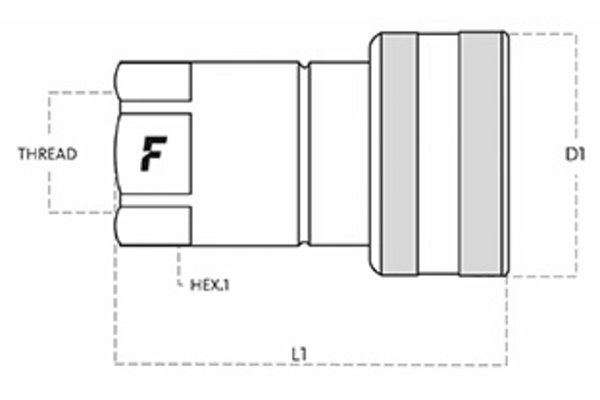

Size: 4 DN: 20 Size: 12 Inch: 3/4 Working pressure [bar]: 250 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 3/4 Outer Ø sleeve [mm]: 52,0 Length sleeve [mm]: 89,0 SW [mm]: 36 SW1 [mm]: 36 l/min at ΔP=2 bar: 190
