SK3-RK2-22CEL15-12M
SK-RK sleeve

Product info

• Specifications

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-L

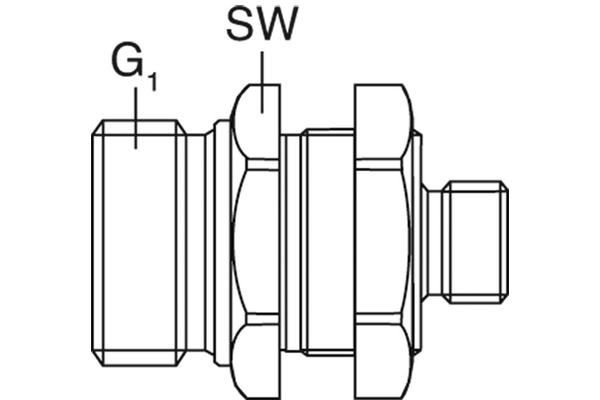

  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	15L
  Outer Ø sleeve [mm]:	36,0
  Connection thread:	Rd36x3
  Length sleeve [mm]:	72,0
  SW2 [mm]:	41
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	75
  Applications:	commercial vehicle industry
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
  wrong type:	false
