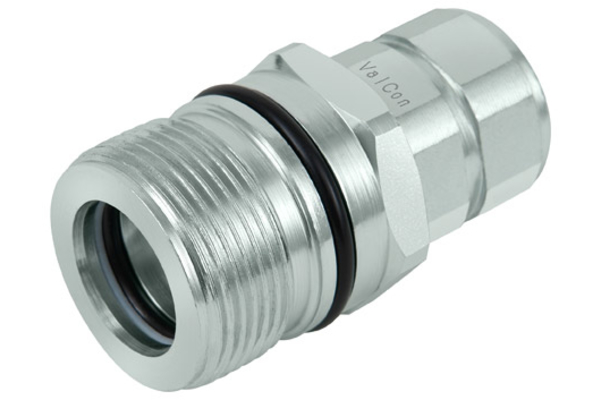

VC-HDS6-CES25-25M
VC-HDS sleeve

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  Working pressure [bar]:	333
  Thread + standard:	CE male thread heavy Series, DIN 3861
  Thread [GA]:	M36x2
  Pipe Ø R [mm]:	25S

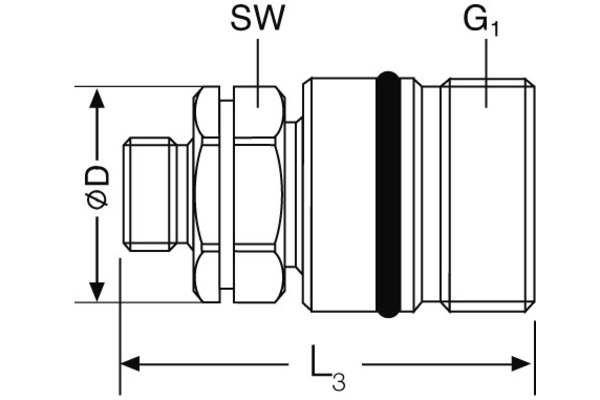

  Outer Ø sleeve [mm]:	54,0
  Connection thread:	M48x3
  Length sleeve [mm]:	99,0
  Ø D [mm]:	54
  burst pressure coupled [bar]:	1400
  burst pressure sleeve uncoupled [bar]:	1300
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	189
  Female or male coupling:	Female
  Material support ring:	PTFE
