ST-HNV04BSP06M

Product info

• Specifications

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	250
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/4
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung

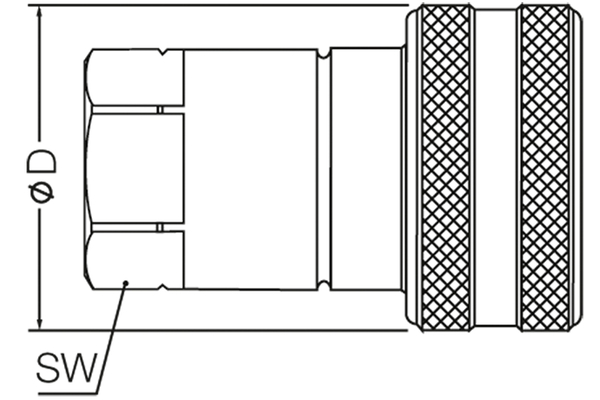

  Outer Ø sleeve [mm]:	28,0
  Length sleeve [mm]:	60,0
  SW [mm]:	19
  Wrench size connection side sleeve:	19
  burst pressure plug uncoupled [bar]:	110
  burst pressure coupled [bar]:	100
  burst pressure sleeve uncoupled [bar]:	180
  SW1 [mm]:	19
  l/min at ΔP=2 bar:	12
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series ST-HNV female coupling.
  Product title short:	female coupling
