Product info
-
Specifications

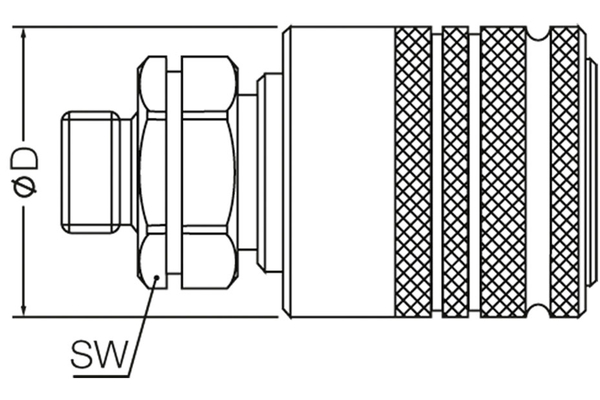

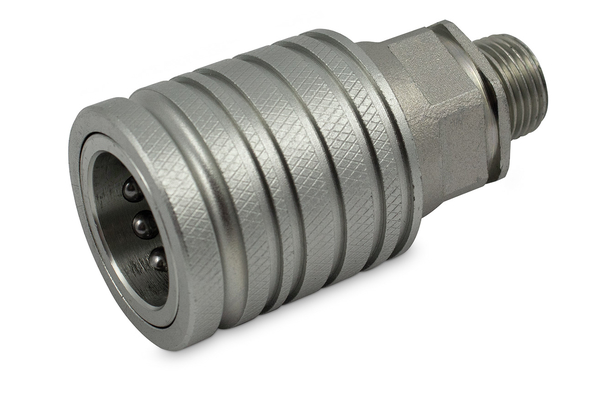

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 300 Thread + standard: BSP female DIN 3852 Thread [GA]: 3/8 Outer Ø sleeve [mm]: 38 Length sleeve [mm]: 66,0 SW [mm]: 27 SW2 [mm]: 27 burst pressure coupled [bar]: 1100 burst pressure sleeve uncoupled [bar]: 1600 l/min at ΔP=2 bar: 50 Material: steel gem. EN10277 Material support ring: PTFE Product title long: Series ST3 female coupling. Product title short: female coupling
