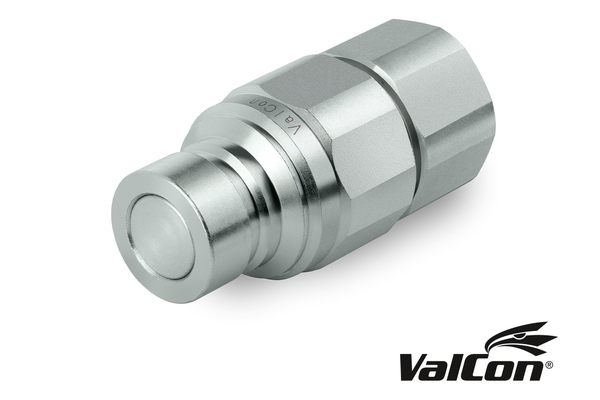

VC-FF-IG3/8-10S
VC-FF Plug

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  Working pressure [bar]:	300
  Thread + standard:	BSP internal thread DIN 3852
  Thread [GA]:	3/8

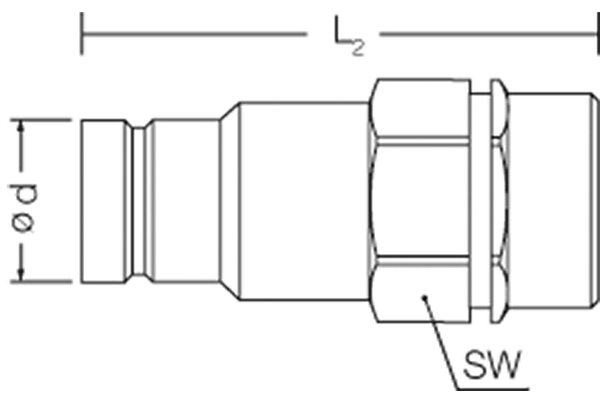

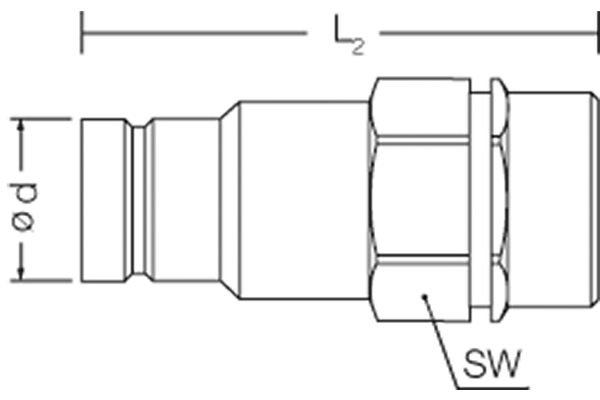

  Outer Ø plug [mm]:	19,7
  Length plug [mm]:	55,8
  SW [mm]:	24
  Wrench size connection side sleeve:	24
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	30
  Material:	C45
  Product title long:	Series VC-FF male coupling (ISO 16028).
  Product title short:	male coupling
