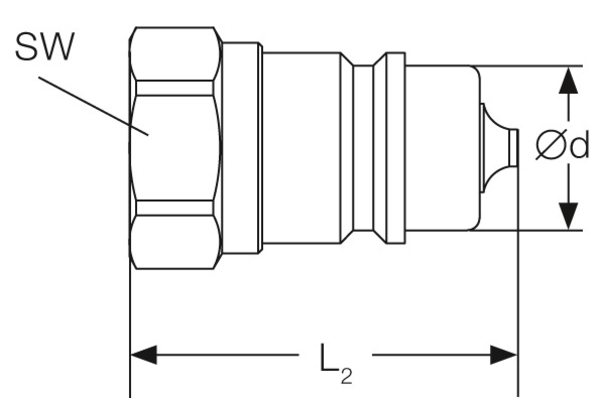

VC-ISO-A-IG3/4-20S

Product info

• Technical data

  Size:	4
  DN:	19
  Size:	12
  Inch:	3/4
  Working pressure [bar]:	275
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4
  Outer Ø plug [mm]:	29,0
  Length plug [mm]:	57,0
  SW [mm]:	35
  l/min at ΔP=2 bar:	105
