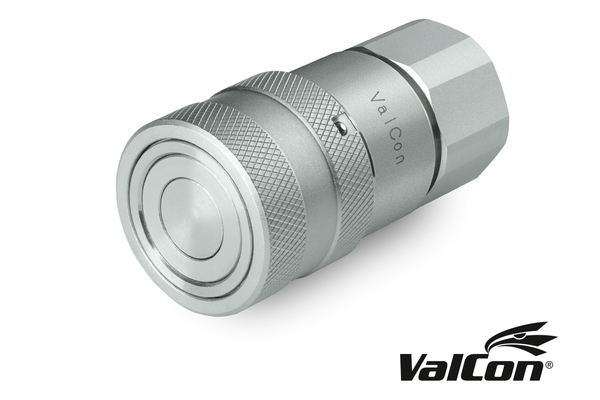

Valcon® Flat-Face VC-FF femal coupling (ISO 16028)

Detail

Size
1
2
2
3
3
4
6
3
DN
06
10
10
12
12
16
19
12
Size
04
06
06
08
08
10
12
08
Inch
1/4
3/8
3/8
1/2
1/2
5/8
3/4
1/2
working pressure [bar]
350
300
300
300
250
250
250
300
Thread + standard
BSP internal thread DIN 3852
BSP internal thread DIN 3852
BSP internal thread DIN 3852
BSP internal thread DIN 3852
BSP internal thread DIN 3852
BSP internal thread DIN 3852
BSP internal thread DIN 3852
Metric male-thread ISO 8434-1-L
Thread [GA]
1/4
3/8
1/2
1/2
3/4
3/4
1
M26x1,5
Outer Ø sleeve [mm]
28,0
32,0
32,0
38,0
38,0
42,0
48,0
38,0
Length sleeve [mm]
58,2
68,2
72,2
75,0
79,0
80,0
99,9
77,2

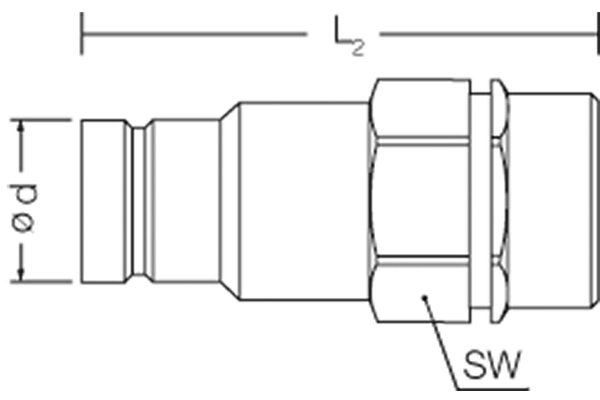

Length plug [mm]
76
SW [mm]
20
24
27
32
36
36
41
Wrench size connection side sleeve
20
24
27
32
36
36
41
SW1 [mm]
20
24
27
32
36
36
41
32
l/min at ΔP=2 bar
10
30
30
60
60
120
200
60
Quantity


Product info

Accessories

dust protection
