VC-FF-IG1/4-06M
VC-FF Sleeve

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  Working pressure [bar]:	350
  Thread + standard:	BSP internal thread DIN 3852
  Thread [GA]:	1/4

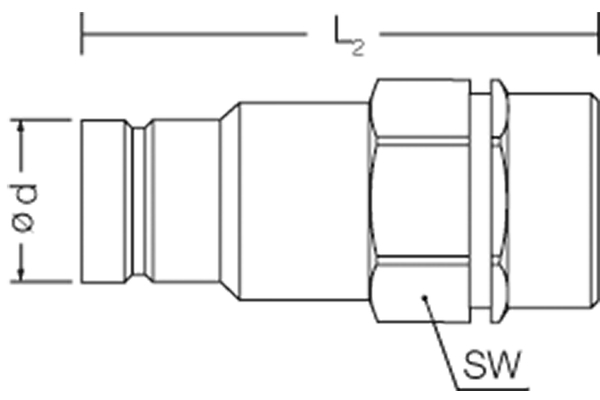

  Outer Ø sleeve [mm]:	28,0
  Length sleeve [mm]:	58,2
  SW [mm]:	20
  Wrench size connection side sleeve:	20
  SW1 [mm]:	20
  l/min at ΔP=2 bar:	10
  Material:	C45
  Product title long:	Series VC-FF female coupling (ISO 16028).
  Product title short:	female coupling
