Produktinformationen
-
Technische Daten

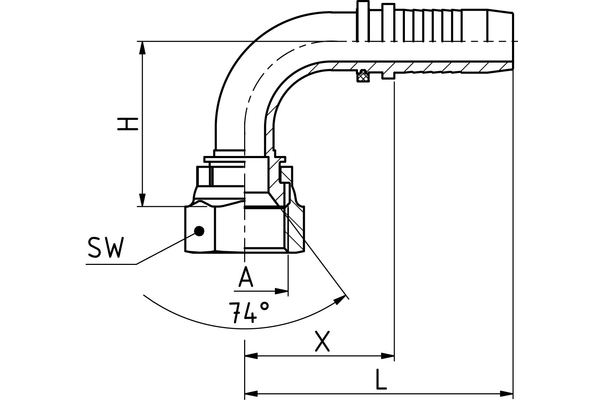

DN: 38 Size: 24 Zoll: 1 1/2" Gewinde + Norm: JIC_Dichtkopf, 74°-Konus mit Überwurfmutter, UN-/UNF-Gewinde Anschluss-Gewinde A: 1 7/8"-12 X [mm]: 104,5 H [mm]: 103 SW1 [mm]: 55 Anschlussart: DKJ 90° Anschlussbezeichnung Indunorm: JF 90° Armaturenreihe: XP-VA Bauform: 90° Grad: 90 Material: Edelstahl 1.4571 Material: Edelstahl 1.4571
